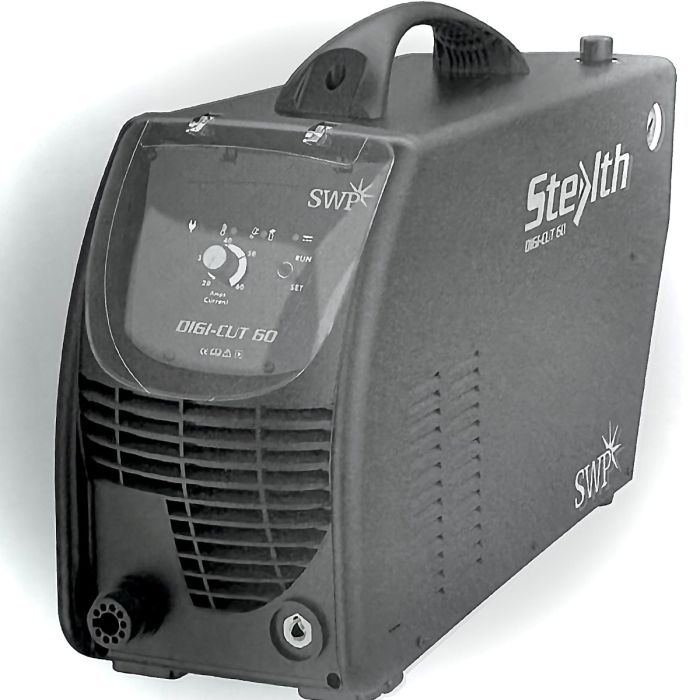

Stealth Digi-cut 60 Single Phase Plasma Cutter

Single phase

Lighweight

Auto over voltage, over temperature and over current protection

includes air pressure regulator

Contact Arc Striking

Frequency (Hz) 50/60

Effective input current (A) 40

Maximum (KVA) 9.5

Current adjustment range (A) 20-60

Maximum no-load voltage (V) 400

Duty cycle (A) (40°C 10 min) 95% @ 60 100% @ 58

Severance cut for carbon steel (mm) ≤35

Production cut for carbon steel (mm) ≤25

------------------------stainless steel (mm) ≤25

------------------------aluminium (mm) ≤20

------------------------ copper (mm) ≤14

Air operating pressure (psi) 50-90 (3.5-6 bar)

 Air operating flow 160

Protection class (l/min) Ip23 (5.65 cfm)

Insulation class H

Cooling - Air

Overall dimensions (mm) 650 x 243 x 445

Weight (kg) 23

Accessories included 3m earth return lead, 3m gas hose
