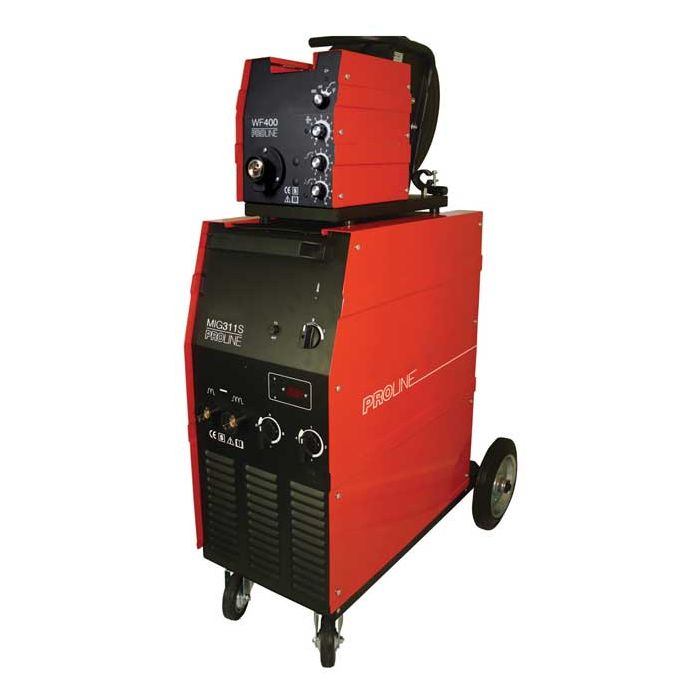

Proline MIG 311S + WF400

Proline MIG 311S + WF400 - Automotive/Light - Medium Industiral Use

The MIG 311S + WF400 is a versatile and robust single phase machine with a separate wire feed unit, ideally suited to automotive and light to medium industrial applications in the workshop or on site. On maximum power and maximum duty cycle, the MIG 311S consumes only 12kVA, requiring only a 35A fuse and can be used in the field from a 15kVA generator. Its full size cabinet can accept a full height gas cylinder, for example our Supermaxx range and the large diameter wheels mean it can be moved from job to job with little risk of toppling. The separate 4-roll wire feed unit (the WF400) features an allgeared drive system, minimising the risk of wire slip to create uniform welds. In addition, with the 5 metre interconnection and 4 metre welding torch, the unit offers a working radius of up to 9 metres. The MIG 311S + WF400 has the ability to take larger diameter wire than lower power units, offering thicker plate welding and feature 16 switch settings to allow for fine tuning of the output power. Supplied with a M25-3 torch and GUK2068.

2 Year Warranty.

Features:

• Copper wound transformer and choke
• Forced air fan cooling
• Digital volt and amp meter
• Overload warning indicator
• Heavy duty front and rear wheels
• All geared 4-roll feed system
• Double support straps for gas cylinder
• Infinitely variable wire speed
• Spot weld timer
• Latch facility
• Burnback control
• Gas purge
• Inch button
• Soft arc technology
• M25-3 torch and 2068 regulator included
• Optional mounting post and wheels available for wire feed unit
• W111440 – Spare 5mtr interconnection cable assembly
