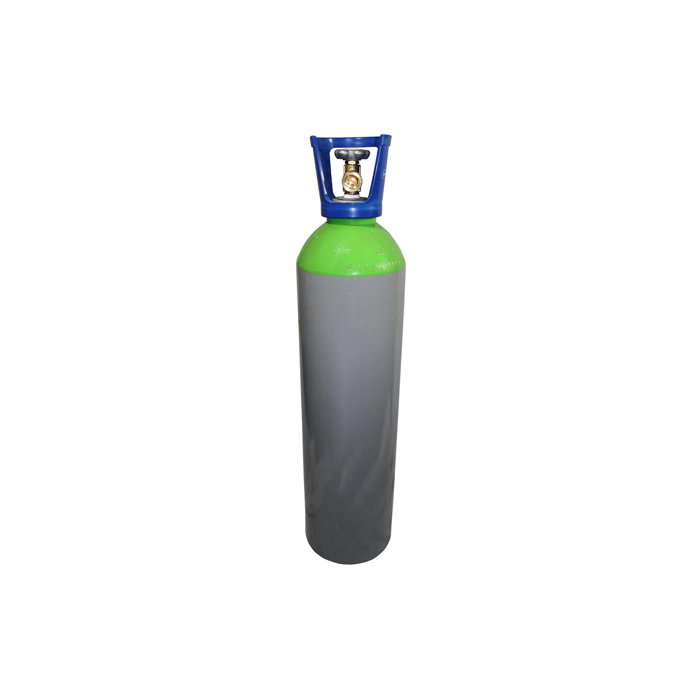

Argon 5 - 20 Litre
Click Here to Return Empty Cylinder as we Deliver
Unsure about the delivery process? Click Here to see our Frequently asked Questions page.
Cylinder ID Code - GU20
Gas Code - 101
Water Capacity - 20 Litres
Approx. Height - 900mm
Approx. Diameter - 204mm
Approx. Gross Weight - 30kg
Approx. Nominal Contents - 4,4m3
Approx. Fill Pressure 200bar - 2900psi
Outlet Valve - BS No.3: 5/8" BSP RH INT Valve
Shipping Class - 2.2 (UN1956)
Cylinder dimensions and weights are approximate measures and may vary.
93% Argon - 5% Carbon Dioxide - 2% Oxygen
STANDARD CYLINDERS REFUND PROCEDURE
| TIME SCALE (MONTHS) | PERCENTAGE DEPOSIT REFUND DUE |
| 12 MONTHS OR LESS (0-365 DAYS) | 100% |
| 12 - 18 MONTHS (366-548 DAYS) | 80% |
| 18 - 24 MONTHS (549 - 730 DAYS) | 50% |
| 24 - 36 MONTHS (731-1095 DAYS) | 30% |
| 36 MONTHS OR MORE (1096+) | 0% (ZERO DEPOSIT WILL BE REFUNDED) |
THE ORIGINAL DEPOSIT AT THE TIME OF ORDERING IS HONOURED
FOR ONLINE ORDER CUSTOMERS A DEPOSIT REFUND APPLIES WHEN CYLINDERS ARE RETURNED
FOR INSTORE CUSTOMERS - EXCHANGE/REFILL FOR THE GAS PRICE - SUR CHARGE APPLIES TO RENEW DEPOSIT ACCORDING TO THE DEPOSIT BOUNDARIES SET ABOVE
Argon 5 - 20 Litre
This three component shielding gas is designed predominantly for welding thinner materials. The addition of oxygen increases arc stability minimising the amount of spatter. This makes the product ideal for welding components that are painted or powder coated after welding. The faster welding speeds achievable with this gas coupled with a low heat input also help to reduce welding distortion.
Our Argon 5 is a proven mixture offering the highest quality, meeting or exceeding ISO 14175:2008 standards.
Advantages
- Easy to use, providing a sound weld at minimum cost.
- Has a low oxidation potential.
- Can also be used for MIG welding standard-grade stainless steel in less critical applications.
- High strength welds.
- Minimal splatter producing good appearance and finish.
- Minimises post-weld treatment and rework.
- Low porosity and other defects.
Applications
- Specially formulated for MIG welding sheet and thin sections of mild steel less than 5mm thick.
- Can be used on mild steel sections thicker than 5mm but care must be taken to ensure the weld integrity is not compromised.
- Ideal for duct and sheet-metal engineering industries.
- A suitable gas in automotive component manufacturing and vehicle repair as it provides dip transfer in all positions with solid wire.
Fabrications
- (MIG) Carbon Steel
Optimum thickness range (mm) 0.6 to 5
| Deposit Label | 12 Month Refundable Deposit |
|---|---|
| Refundable Deposit | £150.00 |
